OSCA-RC8 8-Way Programmable OSC Remote

OSCA-RC8 Front.png
OSCA-RC8 Rear.png

The OSCA-RC8 is an advanced 8-Way Programmable OSC Button Box with TFT Screen – engineered for Show Control, QLab Integration, and Performance Reliability.

Designed for musicians, sound engineers, and live show operators who demand precision and flexibility, enabling them to monitor and  control complex cue lists and 3rd party devices with ease. Featuring OSC Network input, POE or USB-C powering, eight independent programmable buttons, and a clear 480x320 TFT colour screen.

​

The OSCA-RC8 is incredibly easy to program - simply plug it into your laptop, type in the IP address and a simple but powerful user interface takes you through all the steps. If the OSCA OSC network is connected to the internet remote programming and triggering is possible via VPN, together with system updates and future upgrades. Fully compatible with all 3rd party OSC commands and the Nemesis OSCA range.



The OSCA-RC8 can operate in 1 of 5 ways:

QLab Mode:

​Buttons 1-4 operate independently and can be used to send OSC messages. Buttons 5-8 send playhead controls to a specific cue list within QLab.



The LCD screen will automatically update with the cue name of the playhead position when a button is pressed, for example this mode can be used to by a musician to control a cue list of click tracks independently from other cue lists within the workspace.

​

QLab (advanced) Mode:

​As QLab mode, but access is given to buttons 5-8 to allow additions or changes to the auto generated messages.

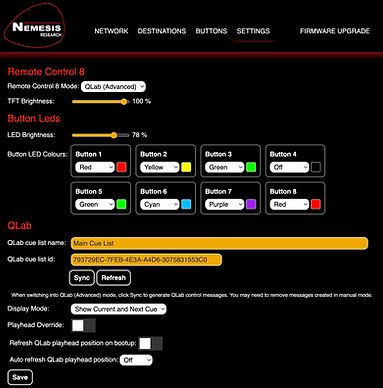

OSCA-RC8 Settings 1.png
OSCA-RC8 Settings 2.png

OSC Mode:

​The OSCA Remote Control 8 runs its own cue list and sends an OSC message each time button 5 is pushed.



The cue number can be embedded into the OSC message sent. This mode can be used to control OSC compatible devices that don’t have a built in cue list or to control an OSC compatible device remotely.

​

Manual Mode:

​All 8 buttons send OSC messages independently. TFT screen can be updated via OSC methods.

​​

*MIDI Mode:

​For future expansion, similar to OSC mode, but sending MIDI rather than OSC messages.

* coming soon

​​

Technical Specifications:

​

  • Display: Backlit 480x320 pixel colour TFT

  • Buttons: 8 x Illuminated momentary push buttons

  • Power: POE IEEE 802.3 or 5V DC USB-C

  • Network: Ethernet 10/100 Base-T

  • Default IP: 192.168.1.253 (user definable)

  • OSC Port: 53500 (user definable)

  • Maximum Cues: Qlab mode or advanced Qlab mode (unlimited)  Standalone OSC mode (50)

  • Firmware: Online upgradable

  • Compatibility: Qlab v4, QLab v5+, OSC

  • Mounting:  Handy 3/8" mic stand adapter  thread allowing multiple ways of mounting

OSCA-RC8 Side View.png

Key features:

​​

  • 8 Programmable Buttons (each button can send up to six custom OSC commands to multiple destinations simultaneously)

  • 480x320 TFT Display (dynamic screen updates in real-time with cue names, feedback, and system status)

  • Multi-Mode Operation (operate in QLab, OSC, or Manual modes for maximum flexibility across control environments)

  • Network Ready (supports static IP or DHCP configuration with web-based user interface)

  • Power Options (power via POE IEEE 802.3 or 5V DC USB-C for flexible deployment)

  • Firmware Upgradable (connect to the internet for seamless firmware updates via Nemesis server)



​​Supplied in the box:

​

  • OSCA-RC8

  • 1m CAT5 cable
